pico-quorum

The production console and the fresh-chip ceremony: a walkthrough

Every picture here is the real firmware running on the emulator with its virtual ATECC608, shown at 2×. node tools/board/shots.mjs regenerates them all. They were made against the console’s test harness (test-vectors/console_test.py), so the Safe is a stand-in (0x5a5a…) on Base Sepolia.

How to review from your phone: comment on any image in the pull request, or tick and edit the change requests at the bottom.

What changed on the device

• It boots straight into the Safe console (main_console.py). It can do nothing else:
  • The legacy wallet, the USB wallet and the demos are no longer on the board.
  • The chip map is gone too; it lives in a separate ceremony image.
  • firmware/manifest.json lists every file the image holds, and a test checks that nothing else on the board can sign or change the chip.
• It signs only with the pinned chip. QUORUM_EXPECT in the board’s secrets.py names:
  • the chip’s serial
  • the slot, which must be locked
  • the owner address the key must produce

  This is checked at start and again right before every signature. tools/fw pin writes it.

• Every signature is counted by the chip (counter 0, LimitedUse). The console shows the count and flags signatures that did not come from it.
• A delegatecall to a contract that isn’t pinned is refused, whatever the hold. Pinned MultiSend batches still work.
• HTTPS checks the server’s certificate against three pinned roots, and the API key is written only after the handshake.
• Robustness:
  • One malformed transaction no longer blanks the queue.
  • No /sim calls go to the real service.
  • Polls are quota-sized.
  • There is a log that survives power cycles (log.txt) and a watchdog.
  • After 20 failures in a row the console stops on a crashed screen and signs nothing.
• Maintenance: hold B (the knob on Build 1) while plugging in until the onboard LED lights. The display stays off; display and Wi-Fi startup are skipped, leaving the USB REPL free.

The console

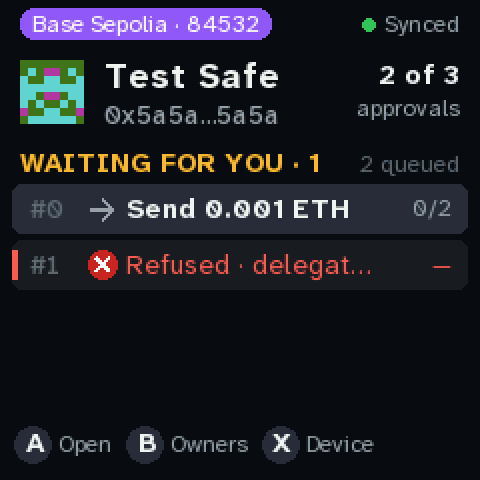

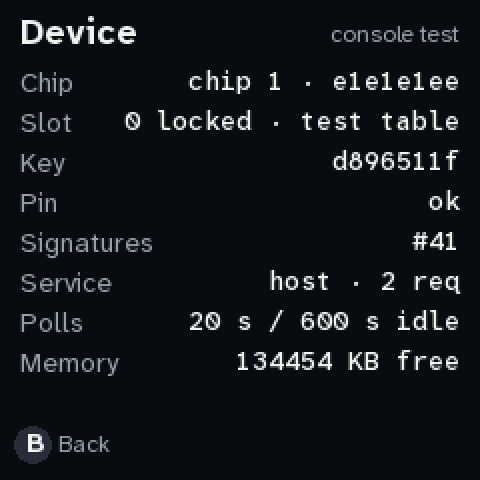

Home. X now opens Device instead of the chip map. The refused row says why in two words.	Device (X). Build, chip serial, slot and lock, key fingerprint, pin, the chip’s signature count, the service and whether its certificate was checked, poll periods, memory. Read-only.

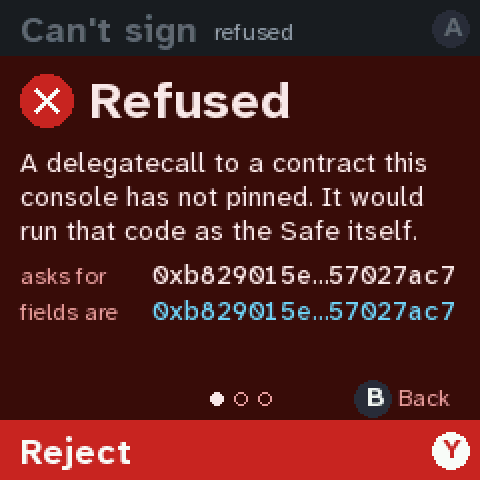

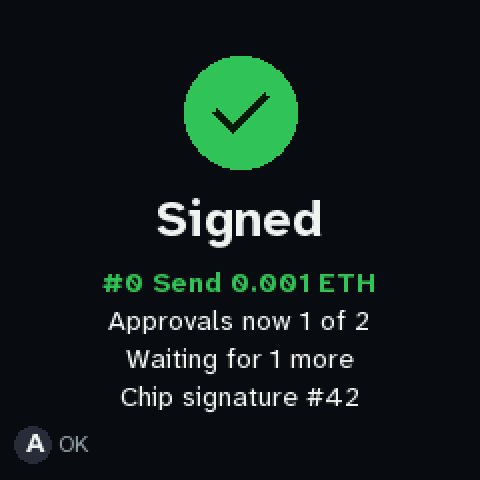

A delegatecall to an unpinned contract: refused. Before, this was a red page you could sign with a 3 s hold.	Signed. The last line is the chip’s own count, which the chip raised itself.

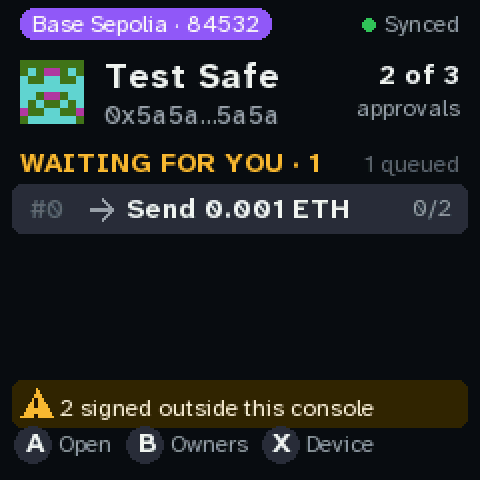

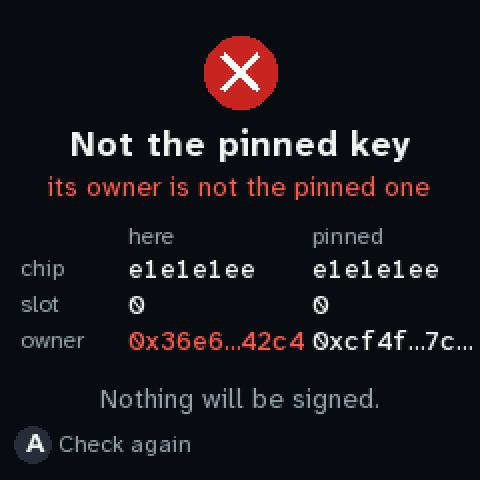

Signatures made while the console wasn’t looking (the chip’s count moved while the console was off). Any key clears the banner; log.txt keeps it.	Not the pinned key. The chip, slot or owner doesn’t match QUORUM_EXPECT. It shows what it found next to what is pinned (serials by their last 8). Nothing signs.

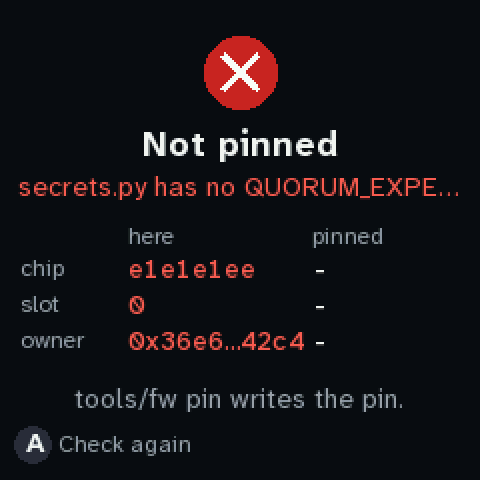

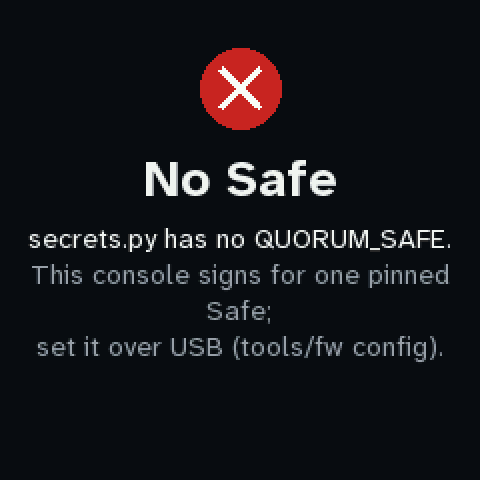

Not pinned. The production image with no QUORUM_EXPECT. tools/fw pin reads the chip, computes the owner on the laptop, compares it with the enrolled one, and writes the pin.	No Safe. The production image never falls back to the laptop’s simulated Family Safe.

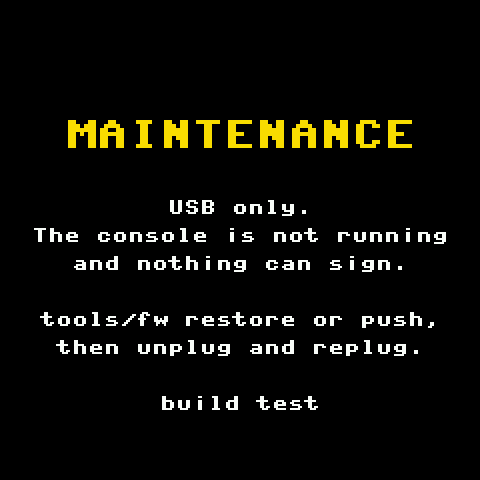

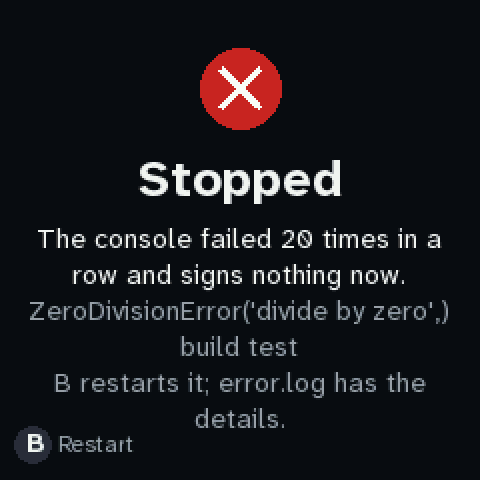

Stopped. After 20 failed ticks in a row. error.log has the traceback. B restarts.	Maintenance. Hold B at power-up. Plain text that draws even when nothing else does.

The ceremony for a fresh chip (quorum v1)

The ceremony image (tools/fw push ceremony) opens on a banner that says it is not a signing console. A starts PROVISION. PROVISIONING.md has the table byte by byte, the reasoning, and the runbook.

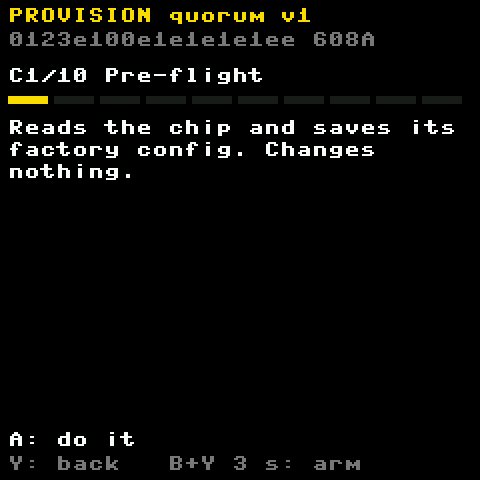

The ceremony image’s banner.	C1 pre-flight. Every step is worked out from the chip itself, so a reboot resumes.

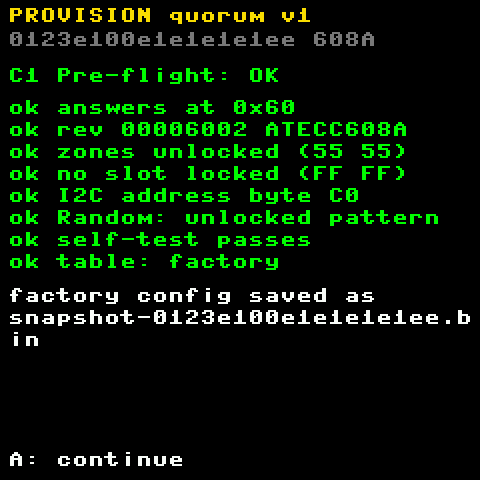

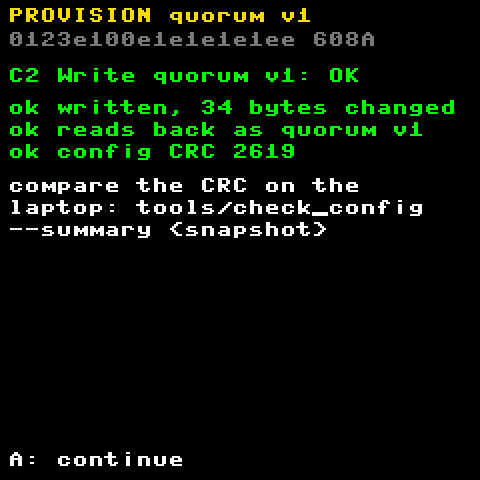

C1’s checks. Address, revision (608A or 608B), both zones open, no slot locked, the factory table. The factory config is saved.	C2: quorum v1 written and read back, and the config CRC to compare on the laptop (tools/check_config --summary).

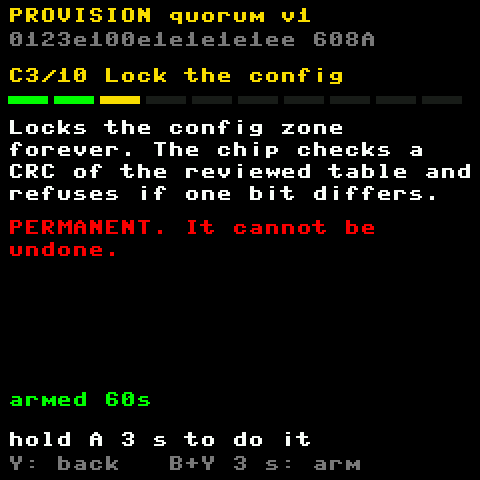

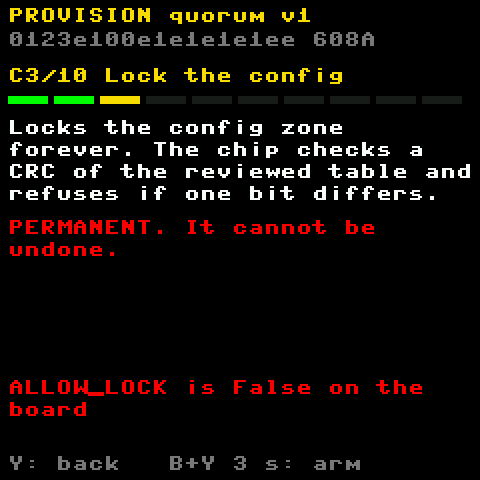

C3, permanent. Arm with B+Y for 3 s, then hold A for 3 s. The chip checks the CRC itself and refuses to lock a table one bit off.	C3 without ALLOW_LOCK: it says why and does nothing.

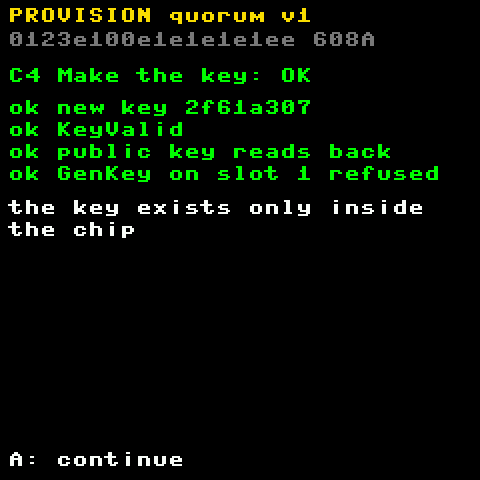

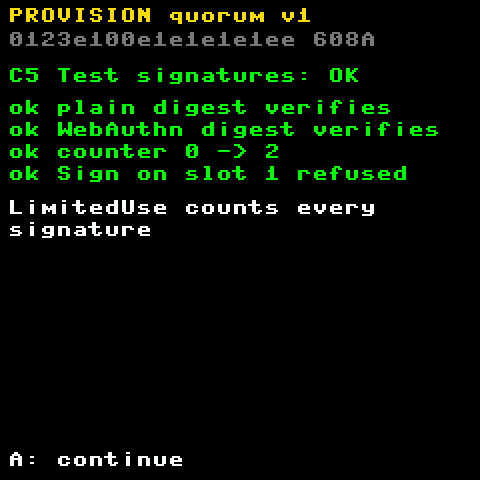

C4: the key, made inside the chip. GenKey on any other slot is refused.	C5: two test signatures verified on the Pico. The counter goes up by 2.

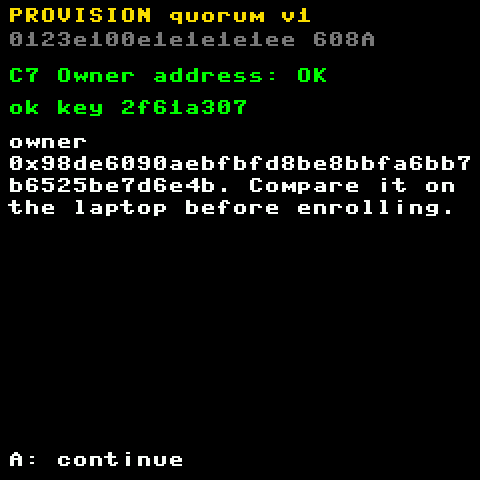

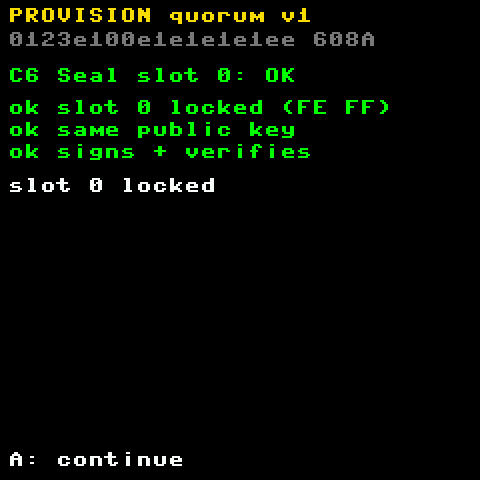

C6: slot 0 sealed. Same key, still signs.	C7: the owner address, in full, to compare on the laptop before anything is enrolled.

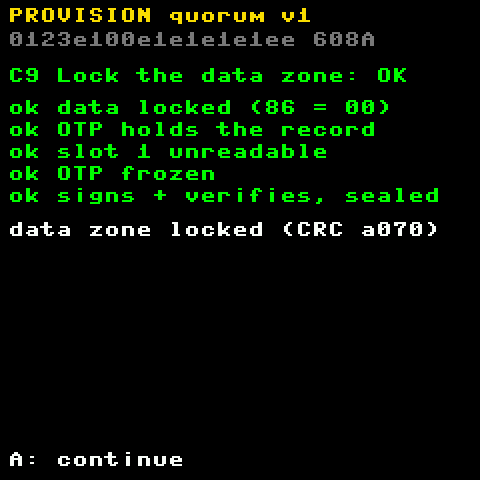

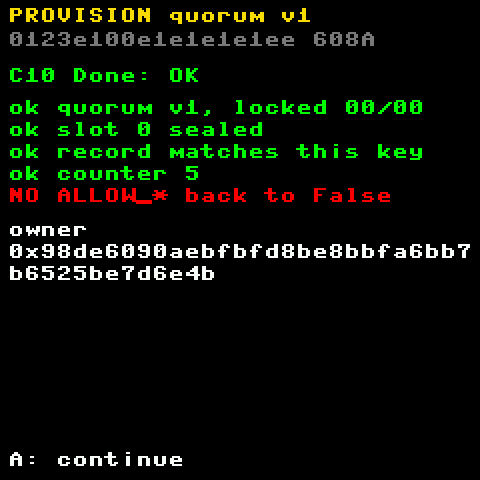

C9: the data zone locked, checked by its CRC. The OTP record reads back, slot 1 is unreadable, OTP is frozen, and it signs under the final rules.	C10: the summary. The one red line is the reminder to set ALLOW_* back to False.

The steps not shown (C2, C4 to C10 before they run, C8’s result) are in shots/.

Which chip is in: chip 1 dark, chip 2 light

The board keeps an index of every chip it has seen, chips.json (firmware/chips.py). Every push keeps it.

• At each boot, both images read the chip’s serial and which config it holds: fresh from the factory, Microchip’s test table (chip #1), or quorum v1.
• A new chip gets the next number and the next theme: chip 1 dark, chip 2 light, then dark again.
• The console draws in that theme and names the chip on the boot screen and on Device.
• The ceremony image uses a light palette for a light chip, and its banner says whether the chip is fresh.
• C10 records the sealed chip’s owner address in the index.
• tools/fw chips lists the index.

It is cosmetic. What gets signed is decided by the pin (QUORUM_EXPECT), read from the chip itself. Chip 2 on a board pinned to chip 1 is named and drawn light, and refused all the same.

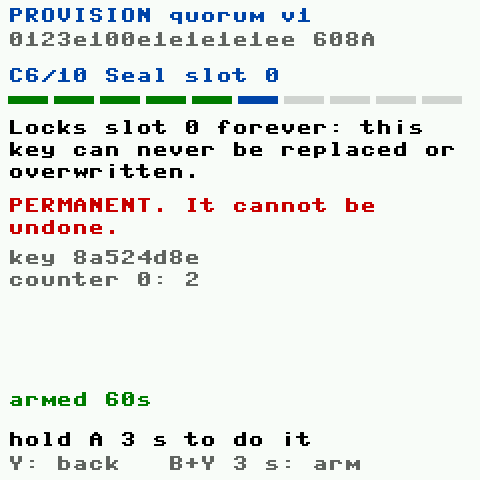

The ceremony image with the fresh chip: chip 2, fresh, light.	A permanent step in chip 2’s colours.

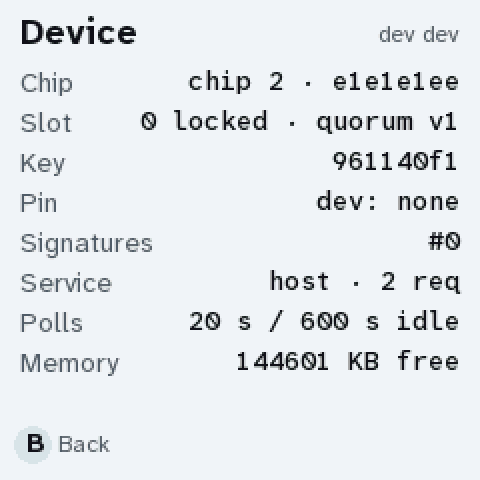

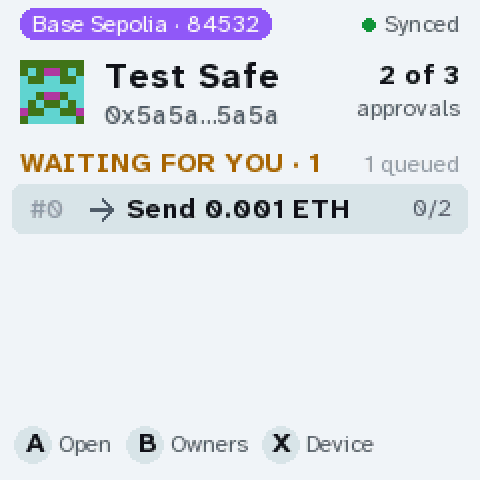

The console on chip 2, light.	Device: chip 2, slot 0 locked, quorum v1.

Tests behind these screens

Suite	Checks
node test-vectors/run-console.mjs	64: every refusal, pin mismatches, hold timing, the signature verified against the chip’s key, counter, request counts, production guards, crash state, watchdog cap
node test-vectors/run-ceremony.mjs	62: C1-C10 on a fresh 608A and 608B with a reboot after every step, the refusals, then the console signing with the sealed chip
node test-vectors/manifest.mjs	Each image is exactly its imports. In the console image only quorum.sign_it signs, and nothing can change the chip
python3 tools/check_config	Both tables, with every quorum v1 slot decoded independently from the datasheet’s bit tables
tools/quorum e2e	One approval on an Anvil fork of Base, executed onchain

Change requests

• (add yours here)
